Umbilical / Connectors Plug Diagram

SFT Support

September 08, 2020 15:54 Updated

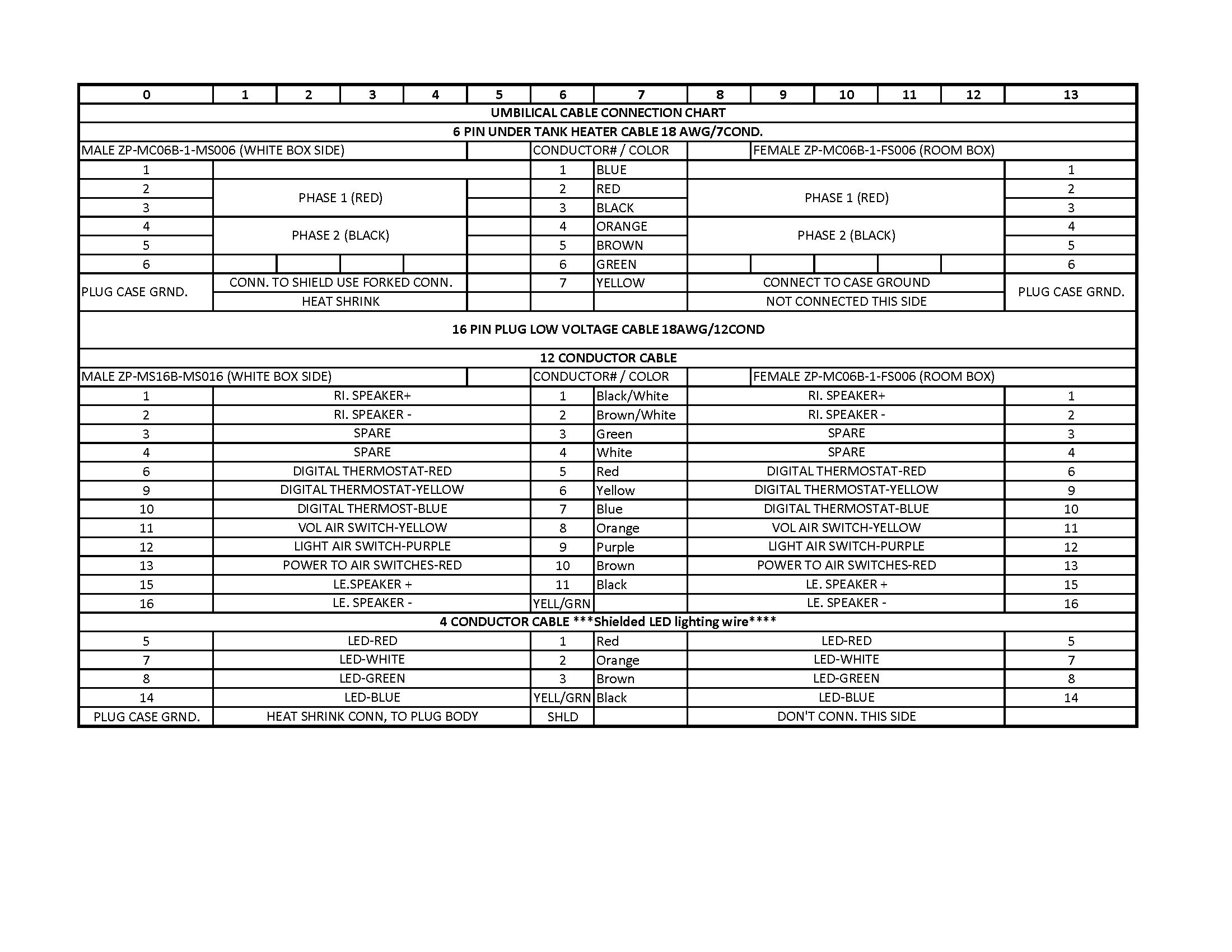

Diagram for wiring on the 16 pin main cable and the 6 pin in tank heater cable.

PDF Link : Connector Plug Diagram
