Umbilical Cable Wiring Details and Diagram

The following is the wiring diagram for the umbilical cables.

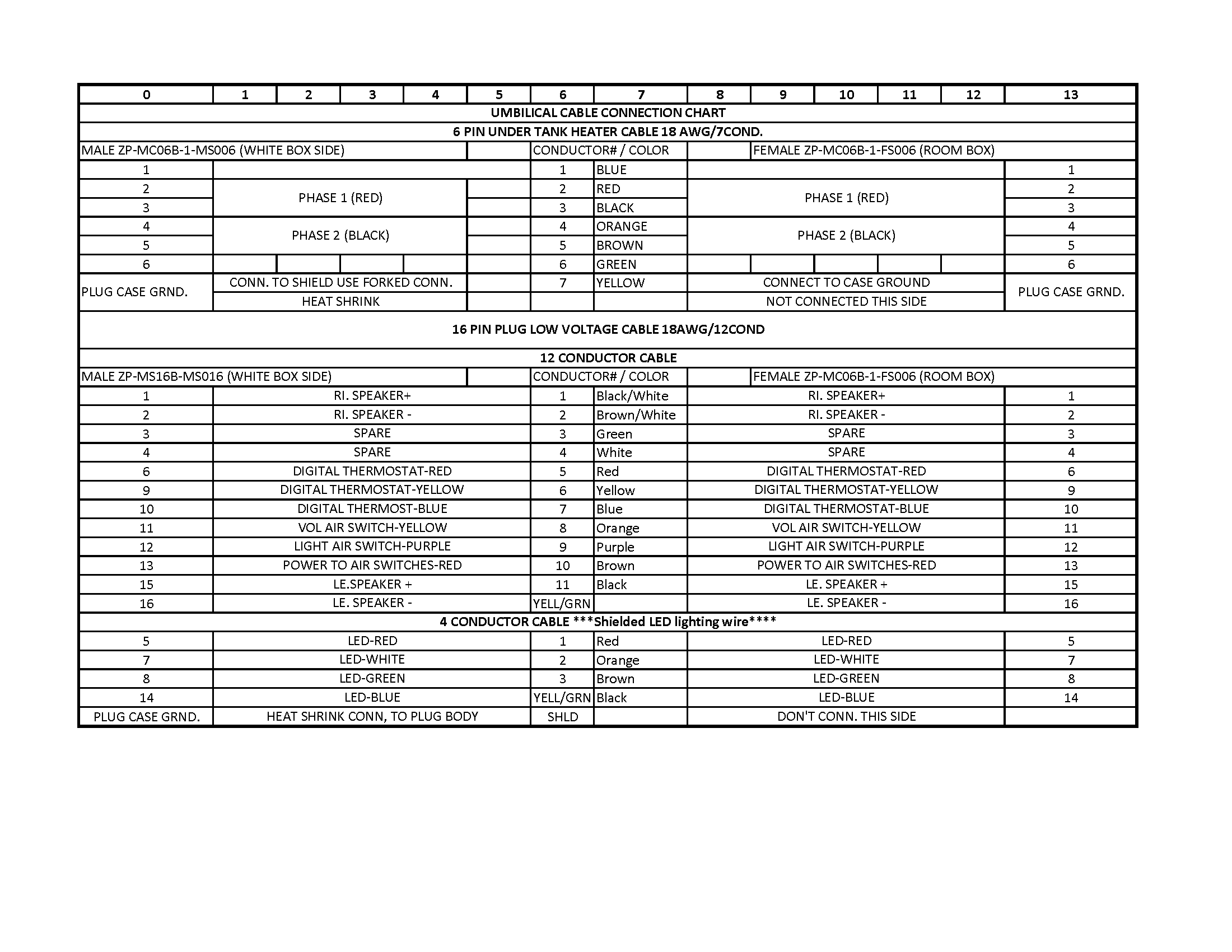

Below is the updated wire chart, which includes the Alt/color wires for cables that do not have all numbers.
