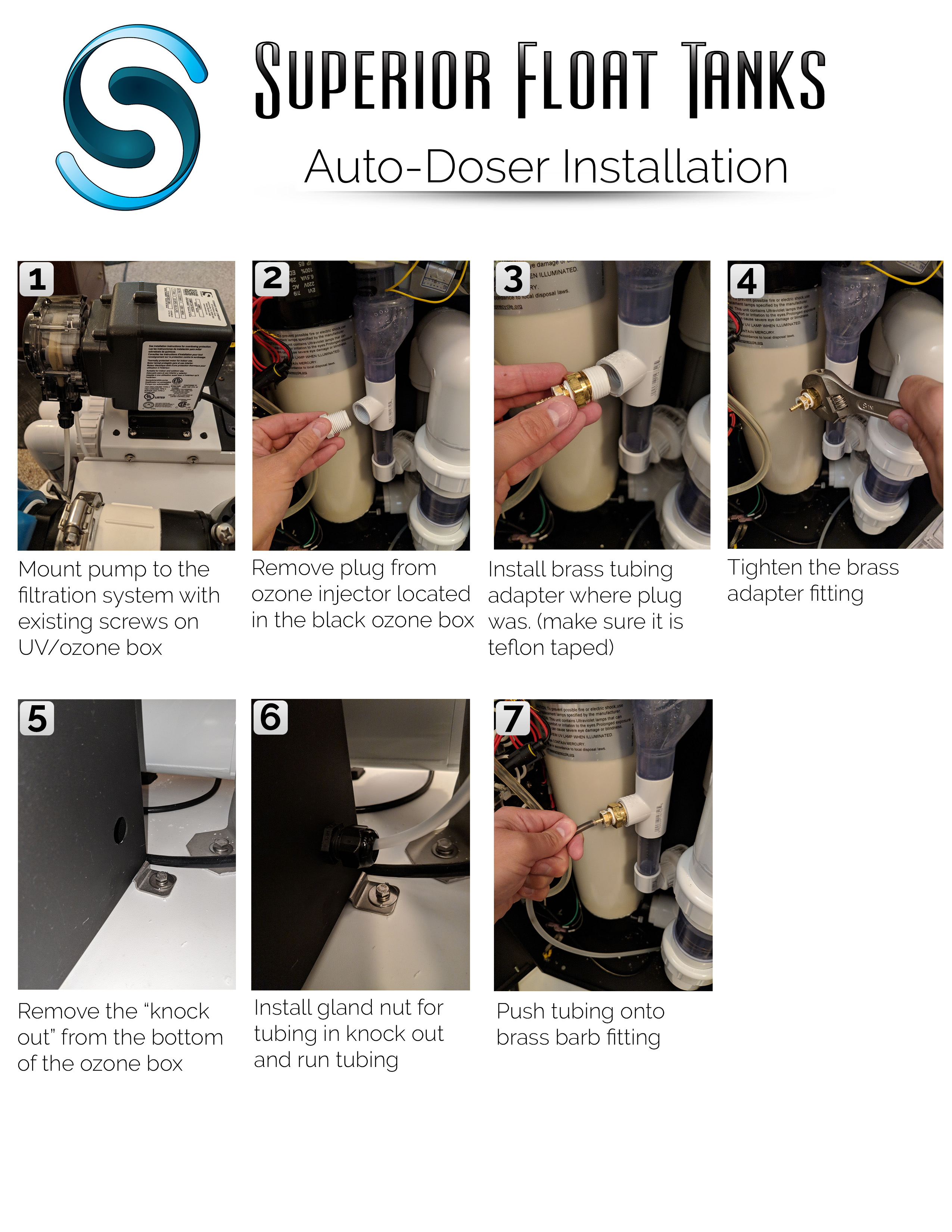

Auto-Doser Installation

The following is the documentation for installing the 45MP3 Auto-doser on the unity filtration system.

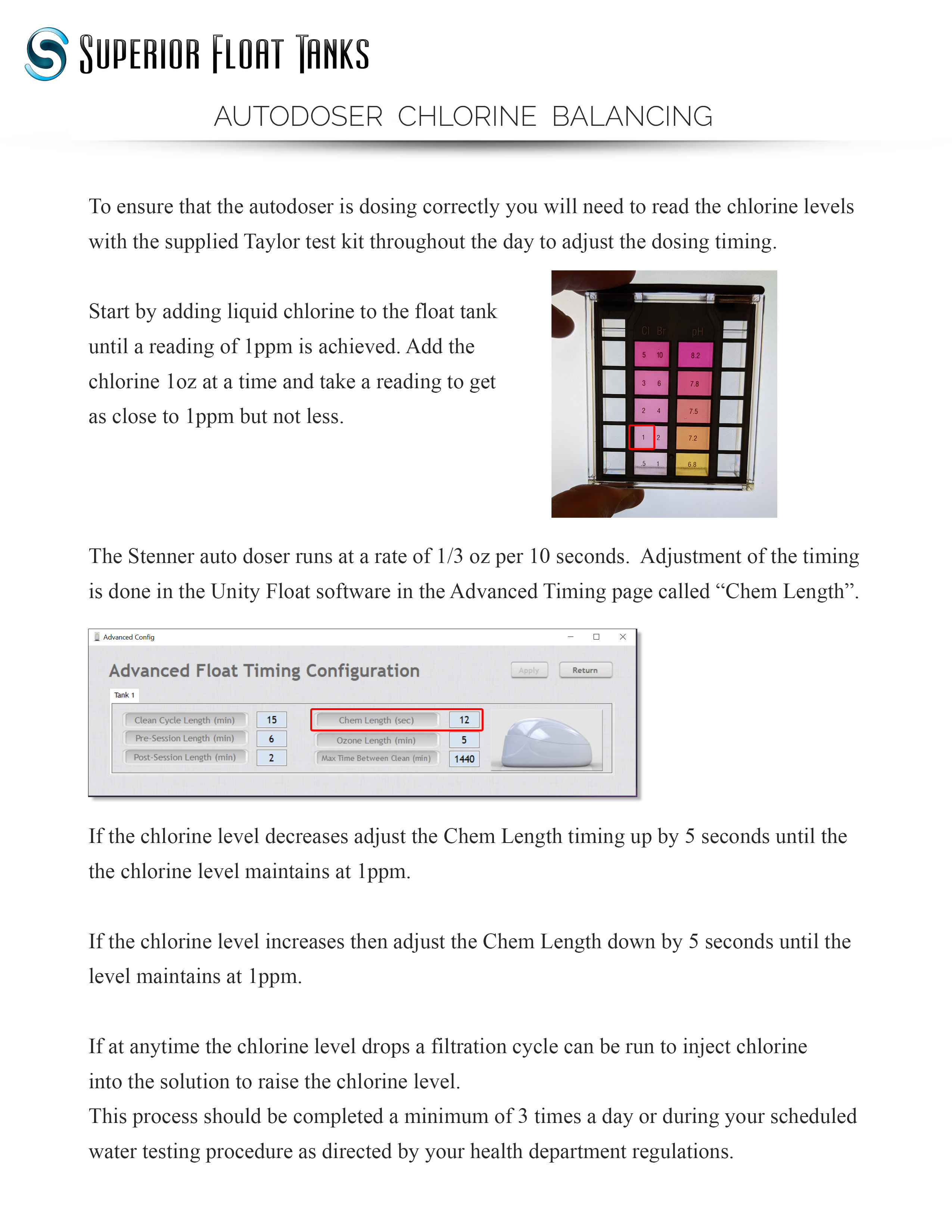

The pump runs at 1/3 ounce of liquid at 10 seconds of operation.  22GDP /  83.3 LPD

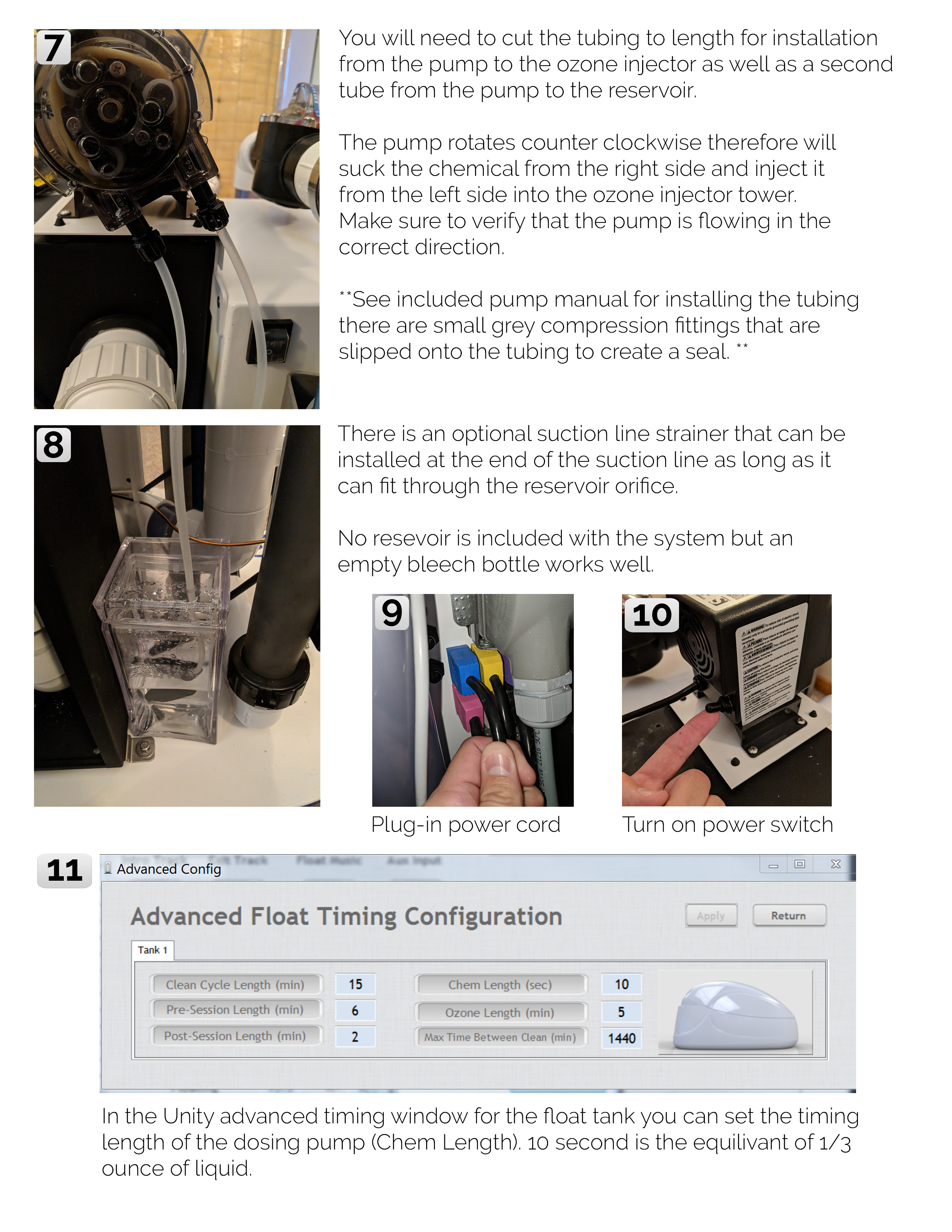

Make sure that the rollers on the dosing pump are extended, please refer to the following video for instructions. If the rollers are not extended, the system may draw H2O2 into the water during the filtration cycle while the ball valve is open during ozone injection, which typically lasts for 5 minutes.
