Electrical Installation Details

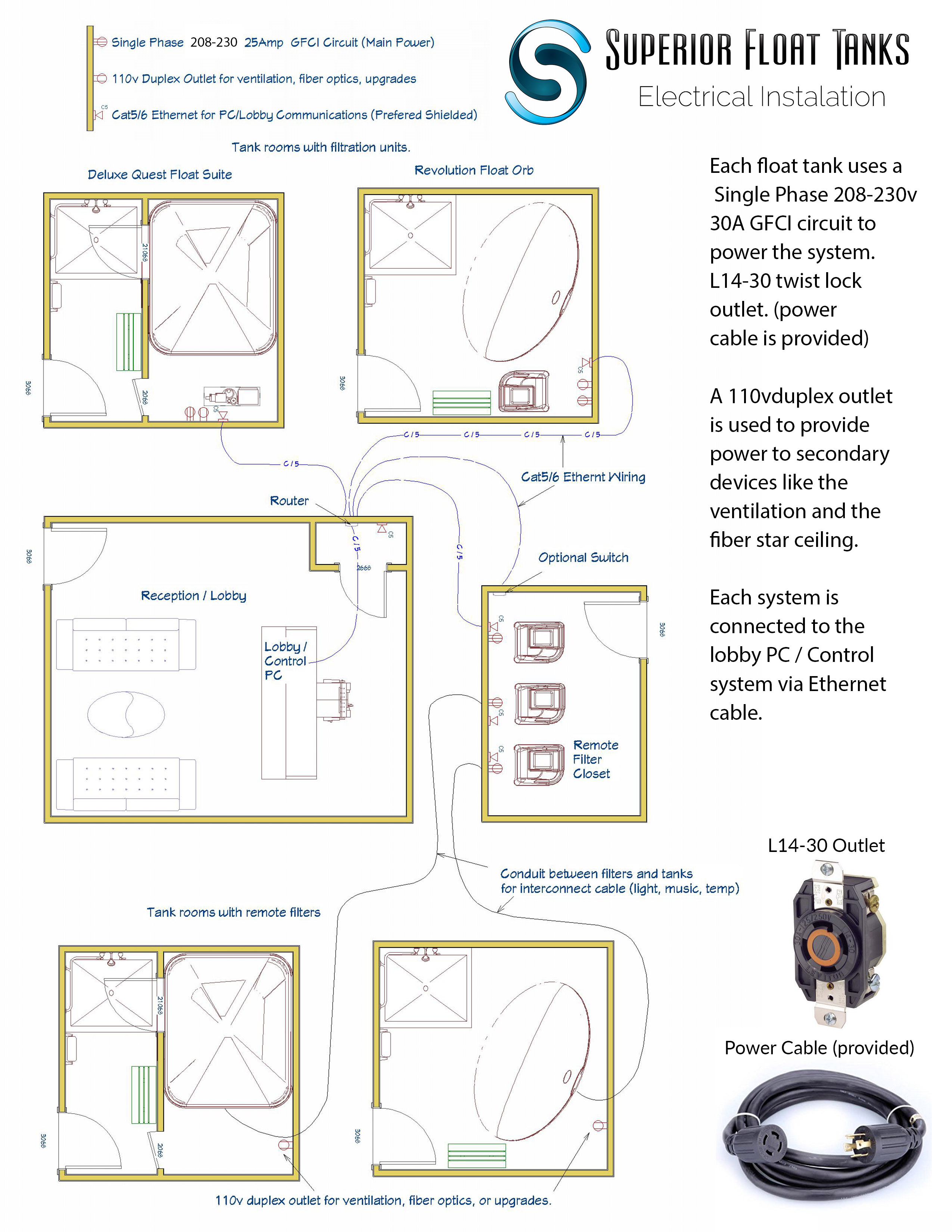

The following diagram outlines the general electrical requirements for installing a Superior Float Tank.



The float tanks require a 208-240V 30 Amp GFCI circuit (single phase or 3 phase are compatible).



The wall outlet should be an L14-30 twist lock outlet which our provided power cable will plug into.



The best GFCI that we suggest for the tank is from the GFCI Store , you would want the 4 wire version with the neutral.

Please email or call Shane Swick below with the part# PGFI-C31A3-114D

 [e-mail]

Shane Swick

Sales/Marketing

[phone] ext:4251

If the filtration is going to be located more than 12 feet away from the tank be sure to review the "Remote Filtration" documentation.

PDF download link at bottom of the page.
